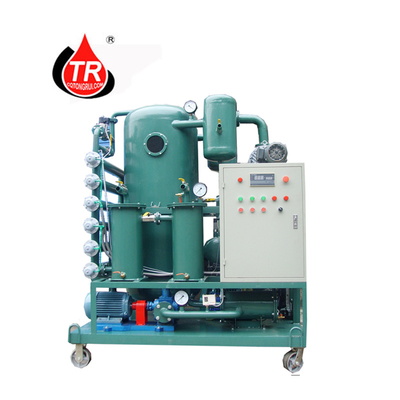

Small Double-stage Vacuum Insulation Oil Regeneration Machine
Application:
Mobile Multifunctional transformer oil purification decolor purifier unit is used for new oil, imported oil, waste transformer oil, transformer oil and transformer system capacitor oil and refrigerating oil etc. It can also be used for vacuum oiling and drying of transformer.
Features:
1) The waste acid value of the transformer oil insulation oil can be reduced quickly and effectively.
2) Reduce the dielectric loss of insulating oil, so that it reaches the national standard
3) Hot oil circulation
4) Transformer oil dehydration, degassing (acetylene hydrogen methane harmful gases), in addition to impurities
5) Transformer oil filter clean
6) sucking vacuum from used transformer oil
7) With the oil exchange function
8) Perform on-site oil treatment and dry electrical equipment
9) Vacuum filling of electrical equipment
10) Trace moisture purification treatment
11) It Can even be used for deep processing trace amounts of water for certain lubricants
12) Unique regenerative decolorization system. The polymer adsorbent is used as a carrier to neutralize the acidic components in the adsorbed oil and use micropores to trap the free carbon and fine gelatin in the oil so as to change the color and the high acid and decolorization performance. And design a flexible discharge device, a short time, quick, less dosage. In the vacuum decolorization, can greatly reduce the cost of recycling, waste does not pollute the environment (can be used for building walls and paving), non-toxic.
13) Handling once, the breakdown voltage can be increased 35-45KV, reduce the aging oil by frequent heating.
14) Machine with a chain of security features, oil inlet and and heating system linkage, to avoid the adverse effects of misuse.
Technical Specifications:
| Item | Unit | ZJR-30 | ZJR-50 | ZJR-80 | ZJR-100 | ZJR-150 | ZJR-200 | ZJR-300 | ||
| Flow rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | ||
| Vacuum degree | MPa | -0.092~-0.099 | ||||||||
| Working pressure | MPa | ≤0.35 | ||||||||
| Ultimate vacuum | Pa | ≤50 | ||||||||
| Working temperature | °C | 45~80 | ||||||||
| Power supply | 380V/50Hz(or as per requirement) | |||||||||
| Noise | dB(A) | ≤ 75 | ||||||||
| Heating power | kW | 30 | 48 | 72 | 90 | 120 | 180 | 240 | ||
| Total power | kW | 33 | 52 | 77 | 96 | 128 | 188 | 252 | ||
| Inlet&outlet size | Mm | 25 | 32 | 42 | 42 | 50 | 50 | 65 | ||
| Weight | kg | 800 | 1000 | 1250 | 1700 | 2150 | 2550 | 2950 | ||
| Oil index after treatment by Waste Transformer Regeneration Machine | ||||||||||
| Breakdown voltage | kV | ≥75 | ||||||||
| Impurity size | µm | ≤3 No free carbon | ||||||||
| Dielectric loss | tgδ (90°C)% | ≤0.005 | ||||||||
| Interfacial tension | mN/m | ≥40 | ||||||||
| Water content | ppm | ≤ 5 | ||||||||
| Gas content | % | ≤ 0.1 | ||||||||
Successful Cases
Certificate
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we have our own factory,we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
