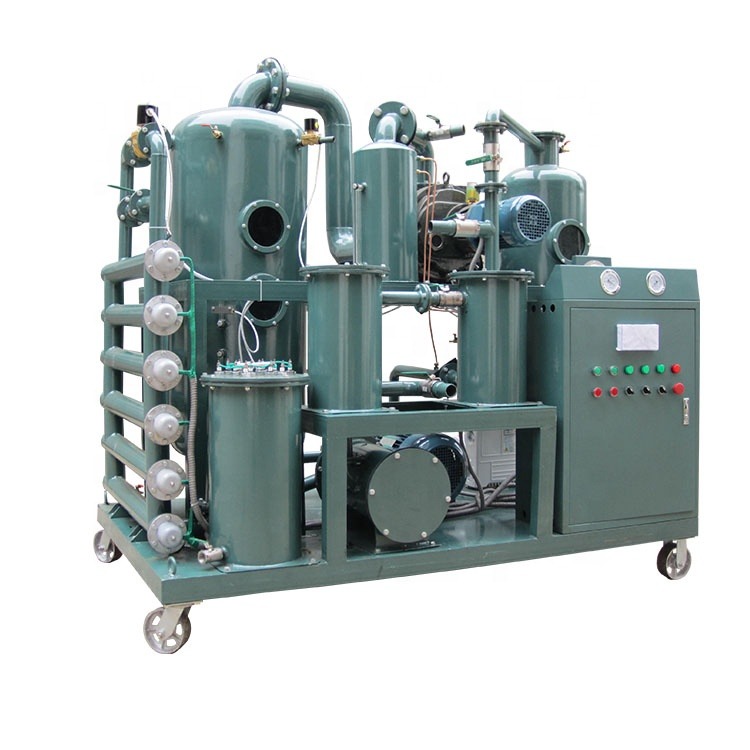

Oil regenerating treatment transformer oil filtration filtration plant mobile
Especially for ultra-high voltage project as ( 1000KV,±800KV, 750KV,±660KV)
Application:
Series ZYD-I is applied to purify and regenerate the used insulating oils includes transformer oil, switch oil, circuit breaker oil, capacitor oil, mutual inductor oil in power generation plants, transformer stations, electric transmission and supplying company, factories, mines, railway transportation, etc.
Features:
1.Besides the common vacuum oil purifier's function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid- alkali water-solubility.
2.Three ways of using: the vacuum dewatering, degassing, removing impurities system can work independently, so dose the regeneration oil system, and also they can work at the same time.
3.The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.
4.High-efficient degassing and dehydration system
5.Precision multi-stage filtration system, high-quality filter element, big capacity of containing pollutant, and fine filtration from one stage to the other.
6.Special absorbing agent is used to remove free carbon and water-soluble acid so as to improve flash point, acid value and dielectric property of oil.
Technical Parameter
Parameters |
Unit |
ZYD-I-30 |
ZYD-I-50 |
ZYD-I-100 |
ZYD-I-150 |
ZYD-I-200 |
ZYD-I-250 |
ZYD-I-300 |
|
Flow |
L/h |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Working vacuum |
MPa |
-0.08 ~ -0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Breakdown Voltage |
KV |
≥65 |
|||||||
Water Content |
PPM |
≤5 |
|||||||
Gas Content |
% |
≤0.1 |
|||||||
Impurity Size |
μ |
≤5 |
|||||||
Temperature Range |
ºC |
20 ~ 80 |
|||||||
Power |
Three Phase 50HZ380V(as per the customer's requirements) |
||||||||
Working Noise |
dB(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
KW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
KW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
Kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Advantages:
It can not only removing the water, gas and impurities which mixed in the oil, but also can improve many values reach to the national standard such as the acid value, PH value. Meanwhile, it improves the voltage-withstand value through filtering the polarity materials like free carbon, deep oxides and so on.
Structure Diagram:
Front side Back side Right side
1 Heater,2 Recycling Pump,3 Oil Inlet,4 Primary Filter,5 Second Filter,6 Viewing Port,7 Vacuum Tank,8 Vacuum Separator,9 Vacuum Gauge,10 Pressure Gauge,11 Temperature Control,12 Name Plate,13 Roost Pump,14 Stretch Flange,15 Low-pressure Electromagnetism Charging Valve,16 Vacuum Pump,17 Oil Pump,18 Pressure Control,19 Water Receiver,20 Draw off Valve
Onsite Using in Bhutan:
Our oil purifiers could be used to purify:
Our certificates:
Cooperation case:
We are offering practical and functional products with competitive Price!!
If you have any question, Please Contact with us directly!!
