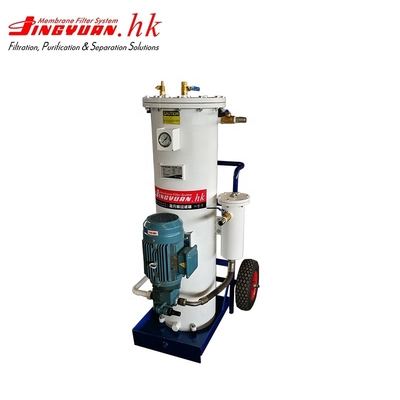

Transformer oil regeneration machine portable oil filtration oil recycling equipment
| Name | Diesel Filtrator |
| Model | JY-G100 |
| Brand Name | JINGYUAN |
| Place of Origin | Liaoning , China (Mainland) |
| Flow Rate | 40~60 L/min (Depends on the viscosity and temperature of oil) |
| Filtration Precision | 2~25μm (According to system requirements) |
| Filtration Material | Jingyuan Polymer Membrane Material Various types,and can be used repeatedly after washed |
| Working Pressure | 0.2~0.35 Mpa |
| Working Temperature | -10~70℃ |
| Suitable Oil | Hydraulic oil, engine oil, gear oil ( Petroleum or mineral base oil) |
| Viscosity | 320# Gear oil |
| Voltage | 380V (Continuously work for long time) |
| Measurement | 800*750*1350mm |
| Weight | 125Kg |
Guaranteed to Provide Clean Oil Filtration Systems (membrane separation, Microfiltration)
Filtration & Separation Solutions for: Solid Particulate and water removal
Suitable for: Hydraulic oil, engine oil, gear oil (Petroleum or mineral base oil) and lubricating oil
Function: Its design makes it ideally suited to removing reliably in a single-pass 98% of contamination and free & emulsified water to less than 2 ppm, thereby guaranteeing the required cleanliness.
Filtration Necessity:
Jingyuan Industrial filter cart is the ideal way to pre-filter and transfer fluids into reservoirs or to clean up existing systems. Fluid should always be filtered before being put into use.
Solid particle pollution leads to the failure of hydraulic system and lubricating system, so it is necessary to filter the industrial oil before pour it into system. New fluid is not necessarily clean fluid. Most new fluids (right out of the drum) are unfit for use due to high initial contamination levels. Contamination, both particulate and water, may be added to a new fluid during processing, mixing, handling and storage.
Applications
• Filtering new fluid before putting into service
• Transferring fluid from drums or storage tanks to system reservoirs
• Conditioning fluid that is already in use
• Complimenting existing system filtration
• Removing free water from a system
• For use with fluids such as hydraulic, gear and lube oils
Any other questions, please feel free to contact us through 7*24 hours online service or send us inquiries by mail.
