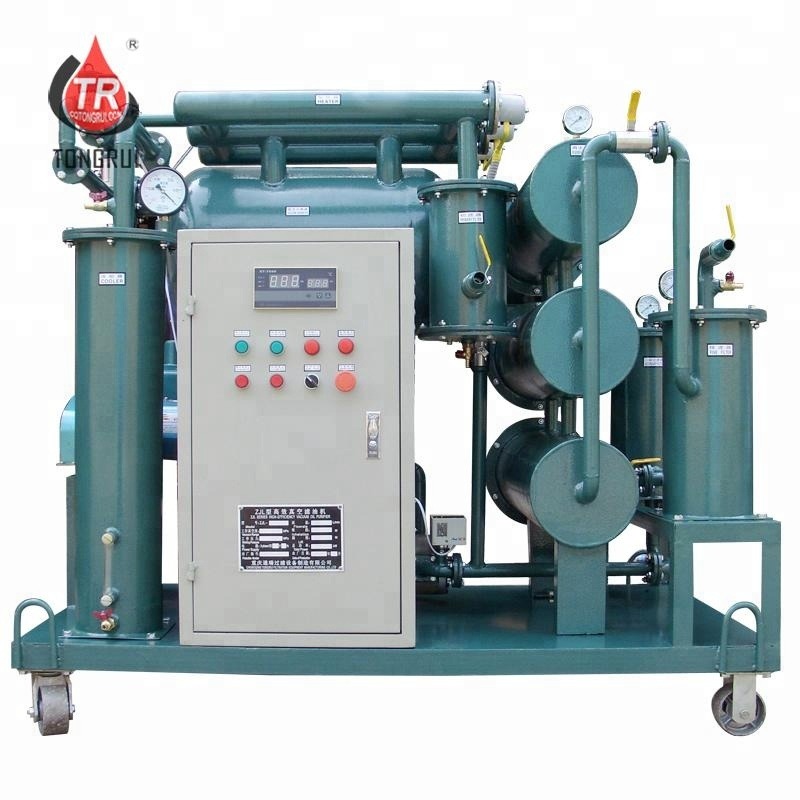

Used Transformer Oil Recycling & Regeneration Machine ,Oil Refinery Plant
Why we should recycle the used transformer oil?
Did you know that used oil never wears out? It just gets dirty and can be recycled, re-refined, and then used again. Recycling oil conserves a natural resource (oil) and is good for the environment too! This machine mainly used to recycling transformer oil, insulating oil and super HV transformer oil, particularly applied in large scale 35KV transport voltage device and the national transformer substations.
Features
The oil technical data after treatment:
1. Gas content is less than 0.1%
2. Impurity size is less than 1μm without free carbon
3. Water content is less than 3 part per million
4. Oil dielectric strength (breakdown voltage) is more than 75KV
5. Acidity value is less than 0.01 mg KOH/g
6. Dielectric loss factors at 90°C is less than 0.001
Oil after treatment
Technical Specification
| Item | Unit | ZJB-10 | ZJB-20 | ZJB-30 | ZJB-50 | ZJB-75 | ZJB-100 | ZJB-150 | ZJB-200 | |||||
| Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | |||||
| Vacuum degree | Mpa | -0.06 ~ -0.098 | ||||||||||||
| Working pressure | Mpa | ≤0.4 | ||||||||||||
| Fault free | H | 4000 | ||||||||||||
| Working temperature | °C | 20-80 | ||||||||||||
| Continuous working time | H | 150 | ||||||||||||
| Power supply | 380V/50Hz (or as per requirement) | |||||||||||||
| Noise | dB(A) | ≤75 | ≤80 | |||||||||||
| Heating power | kW | 9 | 15 | 18 | 30 | 48 | 60 | 90 | 105 | |||||
| Total power | kW | 11 | 17 | 21 | 33 | 53 | 65 | 96 | 116 | |||||
| Inlet&outlet size | mm | 25 | 25 | 25 | 32 | 40 | 40 | 50 | 60 | |||||
| Weight | Kg | 380 | 400 | 420 | 510 | 550 | 730 | 960 | 1200 | |||||
| Size | L | mm | 1050 | 1150 | 1200 | 1300 | 1600 | 1600 | 2100 | 2200 | ||||
| W | mm | 750 | 800 | 800 | 900 | 1000 | 1200 | 1500 | 1600 | |||||
| H | mm | 1400 | 1450 | 1500 | 1600 | 1800 | 1850 | 2000 | 2100 | |||||
| Oil index after treatment by TONGRUII ZJB | ||||||||||||||
| Breakdown voltage | ≥65KV | |||||||||||||
| Gas content | ≤0.1% | |||||||||||||
| Filtering precision | ≤5µm (As per requirement) | |||||||||||||
| Water content | 5~8ppm | |||||||||||||
