Casa /Produtos/Filtro de tambor de aço inoxidável/316 L Drum Filtration Equipment 316L Stainless Steel Smart Rotary Large Scale Fish Farming Filter Mechanical Fish Farming Drum Filter

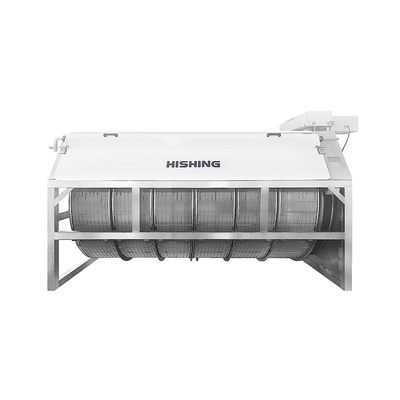

316 L Drum Filtration Equipment 316L Stainless Steel Smart Rotary Large Scale Fish Farming Filter Mechanical Fish Farming Drum Filter

1.0 set
MOQ
316 L Drum Filtration Equipment 316L Stainless Steel Smart Rotary Large Scale Fish Farming Filter Mechanical Fish Farming Drum Filter
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: HS-DF160/24
Maximum water treatment capacity: 1188 m³/h (maximum suspended solids 25mg/L)
Standard mesh aperture: 69 μm
Main structure materials: 316 L stainless steel
Main body size (mm): L * W * H: 3525 * 1900 * 1950
Working voltage: 380 V
Total installed power: 3.55 kW
Main drive motor control mode: frequency conversion control
backwashing & fault alarm: automatic backwash and fault alarm
network interface: equipped, it can realize remote communication and Internet of things
mesh screen: 24 pieces, can be replaced separately and easy to operate
Informação básica
Model Number: HS-DF160/24
Condições de Pagamento e Envio
Packaging Details: Plywood box, stretch film, carton, floor board, etc
Supply Ability: 1000 Set/Sets per Year
Descrição de produto
Specification
Model
HS-DF160/24
Maximum water treatment capacity
1188 m³/h (maximum suspended solids 25mg/L)
Standard mesh aperture
69 μm
Main structure materials
316 L stainless steel
Main body size (mm): L * W * H
3525 * 1900 * 1950
Working voltage
380 V
Total installed power
3.55 kW
Main drive motor control mode
Frequency conversion control
Backwashing & fault alarm
Automatic backwash and fault alarm
Network interface
Equipped, it can realize remote communication and Internet of things
Mesh screen
24 pieces, can be replaced separately and easy to operate
Product Description
Mesh screen as the medium，SMART drum type filter removes the tiny solid in water by mechanical physical filtration directly . It can quickly, massively, and effectively filter the pellets, feces, and organic particles, cooperating with other equipment, it can complete series treatment such as filtration, disinfection, sterilization, and oxygen enrichment for the recirculating water.

It composes main body, flushing pump, pipe filter, control box and the level switch, etc. The level switch detects the water level, the motor drives the drum to rotate, the integrated high-pressure back-cleaning unit cleans the mesh screen, sewage is discharged through the sewage pipe, the cleaned mesh cloth rotates circularly for water filtration.
Feature
● 316 L Stainless Steel frame firm and corrosion resistant ● Drive motor on top away from water vapor, famous brand motor ensures product quality ● on-site state alarmer, inverter controlling for longer motor life ● network interface, for later updated to remote communication & IOT ● Belt drive, stable rotation, long service life ● greater filtration capacity with lower energy consumption
Two options mesh screens

Super - filtering mesh
● 316 L Stainless Steel screen frame, firm and corrosion resistant ● No biofilm on screen ● for sea water above 25 ℃ ● free Maintenance ● easy operation ● 4 screws fix one screen for easy replacement

SMART Drum Filter - Wide Applications ● industrial RAS water treatment ● pretreatment of raw water ● industrial water treatment ● domestic water pretreatment & final treatment ● recycling substances in industrial wastewater, etc.

Automatic Water Level Monitoring
Equipped with automatic water level monitoring device， filter works automatically in the whole process. Inverter Control
The system has its on-site state alarmer, controlled by inverter, the motor can be effectively protected and the motor service life can be prolonged. Backwashing Device
Automatically backwash, with the special sewage groove, it saves water, power and is easy to clean.

Guaranteed Quality
Click here to contact us for more parameter information
Company Profile
HISHING locates in HISHING Smart Industrial Park, No.7 Zhenshui 2nd Road, Automobile Industry New City, Jimo Disctrict, Qingdao. Founded in 2007, it covers 13667 m2 , with mechanical workshop, automation workshop, office building, dormitories & canteens. The 160 staffs include more than 30 mechanical design, electrical au-tomation and software engineers.
HISHING is a high-tech enterprise specialized in the R&D, manufacturing, sales, installation & service for the in-dustrial eco-recirculating water aquaculture system, sea cages farming system & equipment, aquaculture waste-water treatment system, IPA pond circulating water aq-uaculture equipment, intelligent aquaculture manage-ment system and internet of things.
Industry-University-Research Cooperation

HISHING has good technical cooperation with top re-search institutes in China, such as IOCAS, YSFRI, ECSFRI, CAFS, Dalian Ocean University, Ningbo University, Shan- dong University, Ocean University of China and Qingdao University of Science and Technology, etc. HISHING can obtain the guidance of experts and professors in time, and grasp the latest scientific and technological devel-opments in the aquaculture industry in the first time.
HISHING is one of the first company in China to en-gage in the research, development, application and transformation of industrial-eco RAS, with rapidly transforming scientific research results into productiv-ity to provide customers high-quality, high-tech, high reliability and high performance-price ratio of RAS.
Advanced Production Equipment & Facilities

HISHING has 4 sets mechanical production lines, 5 sets electronica special production lines, and 69 sets of all kinds of instruments and equipment. Besides, HISH-ING also has electrical SMT line and AOI series test-ing special equipment. Those equipment and instru-ments enable HISHING a powerful production capacity.
Leading RAS R&D Team

Over the years, under the guidance of experts and pro-fessors from IOCAS and YSFRI, the R&D team has com-pleted lots of RAS equipment R&D and trial manufacture, become a creative and down-to-earth, excellent team. HISHING has been granted 27 utility models patents, 1 invention patent. This team makes HISHING in a leading position in China’s RAS equipment field.
Strict Quality Management

HISHING has passed ISO 9001 - 2015 certification and carried out strict quality management, the strict quali-ty control (QA) has been carried out from the incoming inspection, in-process inspection till to the outgoing in-spection. Through the special-established quality team, the quality tracing, analysis and equipment quality re-cording for a continuous quality improvement has been carried out, HISHING has gained high praises from lot of famous aquaculture enterprises, universities and re-search institutes in China.
Satisfied Technical Supports & Services

HISHING has an excellent technical support & service teams,among which, there are 4 after sales service team, and 3 resident regional service teams. They provide high quality, convenient and timely before-sales supports and after-sales maintenance service to our clients.
Click here for more company information
Why Choose Us
Industry-University-Research Cooperation
HISHING has good technical cooperation with top research institutes in China Advanced Production Equipment & Facilities
HISHING has 4 sets mechanical production lines, 5 sets electronica special production lines, and 69 sets of all kinds of instruments and equipment. Leading RAS R&D Team
HISHING has been granted 28 utility models patents, 1 invention patent. This team makes HISHING in a leading position in China’s RAS equipment field. Strict Quality Management

HISHING has passed the certification of ISO9001:2015 quality management system, ISO14001:2015 environmental management system, OHSAS18001:2007 occupational health and safety management system, and GB/ T23001-2017 integrated management system certification. Satisfied Technical Supports & Services
HISHING has an excellent technical support & service teams, among which, there are 4 after sales service team, and 3 resident regional service teams. They provide high quality, convenient and timely before-sales supports and after-sales maintenance service to our clients.
Workshop
Certifications & Exhibition
Packing & Delivery
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line.
Q2. Why should I choose your products? A2. Our products are high quality and low price.
Q3. The logo and the color can be customized? A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide? A4. Yes,we can provide good after-sale and fast delivery.
