Wastewater Tertment Good Quality Stainless Steel Rotary Drum Filter Water Filtration Machine

1 Set
MOQ
$2,200.00(>=1 Sets)
preço
Wastewater Tertment Good Quality Stainless Steel Rotary Drum Filter Water Filtration Machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Energy & Mining
Showroom Location: Philippines, Indonesia
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Material: Plywood case, SS304/316
Weight: 500-1000kg
Size: Varies with model
Power: 0.55-1.5kw
Warranty: 1 Year
Productivity: Varies with model
Weight (KG): 500 kg
Application: Wastewater Tertment
Certificação: CE, BV, ISO
Color: As Client Request
Type: Circular
Delivery Time: 15-30 Working Days
Voltage: As Per Order
Screen Size: 300*500mm-1000*1500mm
Drum Length: 600-2400mm
Water Flowrate: 80-250m3/h
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Philippines, Indonesia
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Informação básica
Certificação: CE, BV, ISO
Condições de Pagamento e Envio
Supply Ability: 1 Set/Sets per Month
Descrição de produto
Products Description

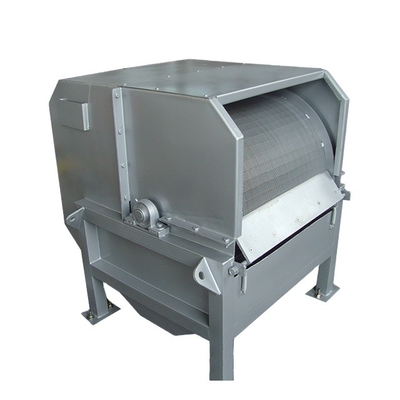

Drum Filter Screen （External Feed）

The Drum Filter (External Feed) is composed of a case made up of stainless steel plate and section bars. The stainless steel filter, whose surface is made up of a stainless steel "v" profile wedge wire type winded up as a spiral, rotates inside the case.The distance between each coil is the same as the desired filtering slot.
Product Paramenters（EXTERNAL)
Model
Screen Size
Power
Material
Backwash water
Dimension(mm)
Flow m3/h
Pressure MPa
WMWLW-300
φ300*500mm
Space:0.15-5mm
0.55KW
SS304
2.5-3
≥0.4
760*700*1200
WMWLW-400
φ400*600mm
Space:0.15-5mm
0.55KW
SS304
2.5-3
≥0.4
860*800*1300
WMWLW-500
φ500*750mm
Space:0.15-5mm
0.75KW
SS304
2.5-3
≥0.4
1050*900*1500
WMWLW-600
φ600*900mm
Space:0.15-5mm
0.75KW
SS304
3.5-4
≥0.4
1160*1000*1500
WMWLW-700
φ700*1000mm
Space:0.15-5mm
0.75KW
SS304
3.5-4
≥0.4
1260*1100*1600
WMWLW-800
φ800*1200mm
Space:0.15-5mm
1.1KW
SS304
4.5-5
≥0.4
1460*1200*1700
WMWLW-900
φ900*1350mm
Space:0.15-5mm
1.5KW
SS304
4.5-5
≥0.4
1600*1300*1800
WMWLW-1000
φ1000*1500mm
Space:0.15-5mm
1.5KW
SS304
4.5-5
≥0.4
1600*1300*1800

Drum Filter Screen （Internal Feed）

Drum Filter(Internal Feed)，which is also called drum screen，is suitable for the solid-liquid separation of industrial wastewater and domestic sewage. It can remove the waste solid whose size is more than 0.2mm.The effluent enters the inside of rotary drum through the feed inlet and then passing over the distribution weir on to the drum surface.The particles and water separate as the drum rotates with the solids staying on the screen and passing down the space of the drum .
Products Paramenters（INTERNAL)
Model
Screen Size
Dimensions
Power
Material
Removal rate
Solid size
Solid size
WMLN-300
φ300*800mm
Space:0.15-5mm
1500*500*1200mm
0.55KW
SS304
95%
55%
WMLN-400
φ400*800mm
Space:0.15-5mm
1800*600*1300mm
0.55KW
SS304
95%
55%
WMLN-500
φ500*800mm
Space:0.15-5mm
1800*700*1300mm
0.75KW
SS304
95%
55%
WMLN-600
φ600*800mm
Space:0.15-5mm
2400*700*1400mm
0.75KW
SS304
95%
55%
WMLN-700
φ700*800mm
Space:0.15-5mm
2700*900*1500mm
0.75KW
SS304
95%
55%
WMLN-800
φ800*800mm
Space:0.15-5mm
2800*1000*1500mm
1.1KW
SS304
95%
55%
WMLN-900
φ900*800mm
Space:0.15-5mm
3000*1100*1600mm
1.5KW
SS304
95%
55%
WMLN-1000
φ1000*800mm
Space:0.15-5mm
3200*1200*1600mm
1.5KW
SS304
95%
55%
Application
Features


1. Simple structure, high reliability; 2.Compact structure, small covering area; 3.The surface of the drum is made of wedge grid, and has excellent hydraulic characteristics.
