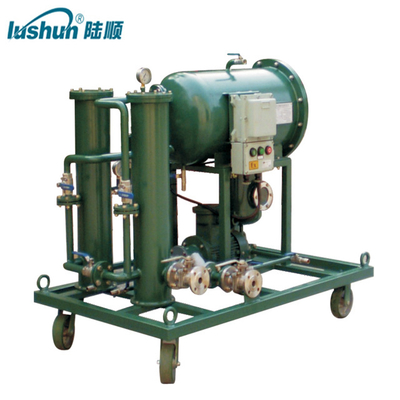

RY Series Coalescence-Separation Fuel Oil Purifier
Application:
RY Series Coalescence-separation Fuel Oil Purifiers are especially used for purifying light oil such as aircraft fuel, gasoline, kerosene, diesel, etc. With functions of impurities removal and dehydration, RY series coalescence-separation oil purifier is a very effective oil purification machine available for processing fuel oil constantly during oil supply.
Fuel oil absorbs atmospheric moisture and solid impurities during storage, transportation, and injection. Massive ineluctable water and impurities emerge into the fuel oil during manufacturing, installation, testing and commissioning process of oil pipeline (storage tank) assembling, welding, preservative treatment, scavenging, and pressure test. Mechanical impurities and free water is the harmful substances for the fuel oil. The water content and impurities shall seriously endanger engine’ s power insufficient and even flame-out to cause disastrous accident. Massive tiny solid particles and droplets shall form stable suspension and emulsion which can not be removed by gravity deposition method. Thus the coalescence-separation oil purifier is necessary for the oil supply system.
Technical Specification:
Model | Rated Flow Rate (M 3/h) | Rated Pressure (MPa) | Inlet/Outlet Diameter (mm) | Working Temperature | Power Supply | Overall Dimension(L×W×H: mm) | Weight(Kg) | Oil Treatment Index | |
Water Content(ppm) | Filtration Precision (μm) | ||||||||
RY-32LJG-3 | 3 | 1 | DN32 | Normal temperature
| 380V/50Hz (Can be customized)
| 1600×800×1100 | 350 | ≤100
| ≤10
|
RY-40LJG-6 | 6 | 1 | DN40 | 1600×800×1200 | 400 | ||||
RY-50LJG-12 | 12 | 1 | DN50 | 1600×900×1200 | 450 | ||||
RY-80LJG-15 | 15 | 1.0 | DN80 | 1600×900×1250 | 460 | ||||
RY-80LJG-30 | 30 | 1.0 | DN80 | 1600×800×1200 | 500 | ||||
RY-100LJG-45 | 45 | 1.0 | DN100 | 1700×1000×1350 | 550 | ||||
RY-100LJG-60 | 60 | 1.0 | DN100 | 1700×1000×1350 | 600 | ||||
RY-100LJG-75 | 75 | 1.0 | DN100 | 1700×1000×1400 | 620 | ||||
RY-100LJG-90 | 90 | 1. | DN100 | 1800×1100×1450 | 800 | ||||
RY-150LJG-90 | 90 | 1.0 | DN150 | 2000×1200×1600 | 950 | ||||
RY-150LJG-120 | 120 | 1.0 | DN150 | 2100×1200×1600 | 1000 | ||||
RY-150LJG-150 | 150 | 1.0 | DN150 | 2400×1250×1650 | 1100 | ||||
RY-150LJG-180 | 180 | 1.0 | DN150 | 2400×1300×1650 | 1300 | ||||
RY-200LJG-180 | 180 | 1.0 | DN200 | 2450×1300×1650 | 1350 | ||||
RY-200LJG-210 | 210 | 1.0 | DN200 | 2450×1300×1650 | 1400 | ||||
RY-200LJG-240 | 240 | 1.0 | DN200 | 2450×1600×1700 | 1450 | ||||
