Introduction

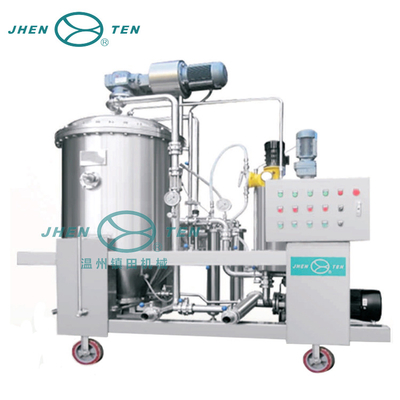

• JTGPY Disc-type Diatomite Filter for all kinds of tiny impurity in liquid filtration, clarification, purification process of the filter element is a special structure, interval stable metal mesh, when the liquid which need to be filtered pass by precoating diatomite filter layer, detention the unnecessary solid things in the liquid which need to be filtered, the pure liquid flow by the disc of the gap between mesh together from the hollow center pipe, achieve liquid filtration.
• The overall structure is designed and manufactured according to the sanitary standard, adopting automatic control system with high quality of water filtration, high filtration precision, reliable performance and easy maintenance.
Feature
• High precision filtering, according to the technological requirements can be achieved 20µm
• Well-made filtering disk processing, special and high precision welding, welding equipment filter is firm, smooth, high pressure resistance
• Transmission is simple and reliable.
1.Using the motor-hydraulic coupling.
2.The reducer-coupling, motor frequency conversion control.
• Mix adding system adopts hydraulic diaphragm pump, wide applicable materials, reliable operation.
• Inside the equipment is equipped with automatic cleaning function, can achieve thoroughly clean without disassembly , high degree of automation.
• Equipped with residual liquid filtration unit, lose less filtrate.
• Compact structure, less land occupation, large production capacity.
• According to user requirements, beer, syrup and other automatic filtering can be realized.
• According to requirement, the diatomite can replace to PVPP, PVPP filtering can be realized.
Application
• Alcohol, syrup, beer, and solid filtration of microorganisms
• End filtration of fruit juice and juice concentrate
• Pre filtering of juice membrane filtration
• Clarification of alcohol, enzyme dissolution, liquid gum, olive oil
• Pharmaceutical, chemical, electronic filtration
| Operating Conditions | |
| Max. operating pressure | 0.6MPa |
| Max. operating temperture | 85℃ |
| Material | |
| Shell | 304, 316L |
| Filter disc etc | 304, 316L |
| Filtrate tube and plate etc | 304 |
| O-ring | EPDM, PTFE Viton, Silicone |
| Connection | |
| Connection of shell | Flange |
| Input | Flange, Tri-clamp, Thread |
| Output | |
| Surface Finish | |
| Finish type | Mechanical/electrolytic polishing, sand blasting |
| Polishing precision |
0.4um Inner surface Ra≤0.6um |
Dimension Parameters
| Model | JTGPY12G700 | JTGPY24G900 |
| Filter area (m²) | 12 | 24 |
| Filter plate diameter (mm) | 700 | 900 |
| Quantity | 35 | 42 |
| Max handle (m³) | 6 | 12 |
| In-outlet dimension (Inch) | 1.5"/2"/2.5" | 2"/2.5"/3" |
| Filter motor (kw) | 3 | 4 |
| Mixing motor (kw) | 0.55 | 0.55 |
| Shell dimension (mm) | 2300*1200*2500 | 2500*1400*2800 |
The above-mentioned data is the standard, it can customize according to customer's requirements. (Unmarked length unit is mm)
JTGPY Selection Table
| Diatomite filtration Filter area | Filter plate diameter | Shell Material | In-outlet connection | O-ring |
| 12G | 700 | 4 | F | E |
| 12G=12m² | 700=Ø700 | 4-304 | F=Flange | E=EPDM |
| 24G=24m² | 900=Ø900 | 6=316L | K=Tri-clamp | P=PTFE |
| L=Screw thread | V=Viton | |||
| S=Silicone |
Wenzhou Jhenten Machinery Co exceeds in this filed and has been credited wth honors of ISO9001-2008 quality management system certificate, CE certificate and ASME certificate.
In additon to the introduction of new manufacturing methods an the purchase of advancedwelding equipment, we are also dedicated to researching the improvement of quality, functionand usage life of our products. We have been meenting global demand of high quality & technical support to our clients. Our products cover from all kinds sanitary filter, cartidge filter, bag filter, mixing tank, strorage tank etc, which have been applied into fields of pharmacy, food & beverage, biological engineering, lab soluton laboratories, mineral water, liquor and cosmetics.
No matter the functions, data presentation material use, welding techniques, Qc, or the lookof our products have gone through careful design and are strictly comply with ISO9001 and CE standard system. Besides we have obtained the sanitary license and honour of high quality & honesty from authority.
Q: CAN I HAVE SAMPLES TO TEST?
A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available. Please note, free samples is not acceptable.
Q: DO YOU HAVE ANY MOQ LIMITED?
A: Our MOQ is 1PC to supply new customers.
Q: WHAT'S THE LEAD TIME?
A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.
Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?
A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.
