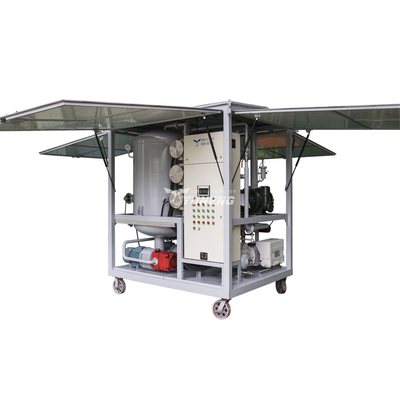

Reliable Vacuum Transformer Oil Purifier, Oil Filtration Machine for Power Transformer
By absorbing the advanced technology of similar products at home and abroad, our Reliable Vacuum Transformer Oil Purifier, Oil Filtration Machine for Power Transformer has excellent performance both in design and cost. The oil treatment process and overall performance are in the leading position in China with its advantages of high working vacuum, fast oil filtration speed and oil quality protection. It is mainly used for purify the oil used in ≤500KV electricity. This series may include two types, fixed close type and mobile trailer mounted type, suitable for oil treatment, transformer vacuum oilling and hot oil circulation draying during big transformers installation and maintenance.
1. Used in the electric power system (66kV~500KV).
2. Features include high working vacuum, fast oil filtering and sound oil protection.
3. Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.
| Item | Name of Parameter | Unit | Model | ||||||
| ZJA1.8KY (1800L/h) |
ZJA3KY (3000L/h) |
ZJA6KY (6000L/h) |
ZJA9KY (9000L/h) |
ZJA12KY (12000L/h) |
ZJA18KY (18000L/h) |
||||
| Technical parameter of the equipment | Nominal flow capacity | L/min | 30 | 50 | 100 | 150 | 200 | 300 | |
| Limit vacuity | Pa | ≤5 | |||||||
| Working vacuity | Pa | ≤80 | |||||||
| Working pressure | MPa | ≤0.5 | |||||||
| Working temperature of oil | ℃ | 45~65 | |||||||
| Working power | (380V-50Hz) 3Phase 4 Wires, or as per buyer's option | ||||||||
| Total electric power | KW | 16 | 36 | 70 | 100 | 150 | 200 | ||
| Pipe dimeter of oil outlet/inlet | DN | 20/20 | 25/25 | 32/32 | 40/40 | 50/50 | 65/65 | ||
| Size | Length | cm | 160 | 180 | 220 | 250 | 280 | 345 | |
| Width | cm | 125 | 145 | 160 | 195 | 215 | 260 | ||
| Height | cm | 200 | 220 | 245 | 270 | 300 | 300 | ||
| Weight | Kg | 500 | 700 | 1460 | 1800 | 2400 | 4000 | ||
| Oil treatment index | Oil breakdown voltage | KV | ≥70 (Spherical Electrodes) | ||||||
| Water content | PPM | ≤5 | |||||||
| Air content | % | ≤0.3 | |||||||
| Filtering accuracy | μm | 1 | |||||||
Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14,500 square meters, specializes in the R&D, manufacturing, and marketing of turn-key projects in oil purification, water and gas filtration, and other reclamation products.
We gather a group of specialized talents with years of working experience and technological development. Now we have 168 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture. We attach great importance to product quality, specialization, dedication and constant improvement......
