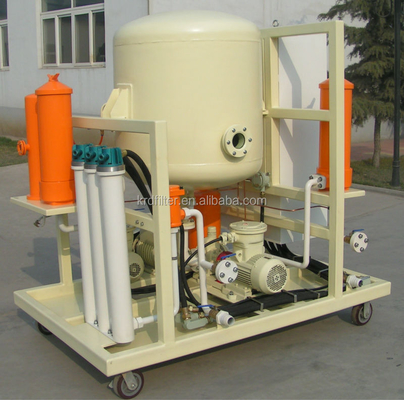

Used Hydraulic Oil Transformer Oil Filtration Machine Vacuum Oil Purifier Portable Oil Purifier

1.0 Sets
MOQ
Used Hydraulic Oil Transformer Oil Filtration Machine Vacuum Oil Purifier Portable Oil Purifier
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Showroom Location: Canada, Russia, UAE
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Condition: New
Flow: 50L/min
Voltage: 380v/50hz
Power: 36KW
Dimension(L*W*H): Model Choose
Weight: 200kg
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas, Online support
Function: Degassing, dehydration, demulsification, deacidification
Application: Hydraulic oil, lubricating oil,turbine oil,fuel oil,transformer oil
Medium Temperature: 40-60℃
System Rated Pressure: 1.6MPa
Working Vacuum: -0.075~ -0.095MPa
Filter Allow Pressure: 0.35MPa
After Warranty Service: Video technical support
Local Service Location: United Kingdom, India, South Africa
Certificação: ISO9001:2008
Informação básica
Certificação: ISO9001:2008
Condições de Pagamento e Envio
Descrição de produto
Product Description
 Based on the foreign oil purification device technology, our company developed a new generation of ZATA multi-functional vacuum oil purifier equipment. Controlled by the PLC, easy to operate, fast,  ZATA multi-functional vacuum oil purifier machine can effectively degas, dehydrate, emulsion break, disacidify, clean mechanical impurities, so that it make oil meet the standard. ZAKA vacuum oil purifier machine can be widely used in turbine oil in powder system , transformer oil, phosphate fuel oil, oil purification in metallurgical, petrochemical, machinery, aviation industry. Vacuum dehydration oil purifier machine is a set equipment of fine filtration and high efficient dehydration. It can remove the particles in the oil, emulsified water and free water. Vacuum oil purifier machine consists of particle filtration system, vacuum dewatering system, heating system, oil drain system and automatic control system.


Vacuum dehydration oil purifier machine is a set equipment of fine filtration and high efficient dehydration. It can remove the particles in the oil, emulsified water and free water. Vacuum oil purifier machine consists of particle filtration system, vacuum dewatering system, heating system, oil drain system and automatic control system. Particle filtration system --- Three stage filter, coarse filter which is located on suction port protect the pump and extend the life of the main filter. There are two fine filter in the back of pump, make the oil quickly reach high cleanliness. Filter material use special gradient pore glass fiber, it can filter different size particles, greatly improving the filter life. It has perfect filter structure, which can effectively reduce the flow rate of filter material surface, to obtain stable filtration accuracy. Vacuum dehydration system ---- It consists of vacuum irrigation, vacuum pump, condensate irrigation, air supply system. vacuum dehydration can effectively remove various states of water in the oil, and can remove air and a variety of volatile substances in the oil. The effect of vacuum water removal is mainly related to working vacuum and oil temperature. The lower the vacuum, the higher the temperature, the better the water removal effect. Oil temperature is generally about 60 ℃, high temperature will accelerate the oxidation of oil. For hydraulic oil, vacuum is generally 600-700Pa, it can make the water content of oil down to 30ppm or less. For transformer insulating oil, use higher vacuum, a higher degree of vacuum can be used, the water content can be reduced to 10ppm. Heating system --- step by step heating, the surface heat load is less than 1.0W / cm2, will not overheat caused oil deterioration. Oil temperature can be adjusted at 0-100 ℃, automatic control, and set one protection device, when the oil is too small , automatically stop working, and avoid burning caused damage to the heater. Automatic control system --- ZATA vacuum oil purifier machine uses frequenc

Specification
item
value
Applicable Industries
Manufacturing Plant, Machinery Repair Shops, Energy & Mining
After Warranty Service
Video technical support
Local Service Location
United Kingdom, India, South Africa
Showroom Location
Canada, Russia, UAE
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Motor
Condition
New
Flow
50L/min
Place of Origin
China
Brand Name
KERUIDA
Voltage
380v/50hz
Power
36KW
Dimension(L*W*H)
Model Choose
Weight
200kg
Certification
ISO9001:2008
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Function
Degassing, dehydration, demulsification, deacidification
Application
Hydraulic oil, lubricating oil,turbine oil,fuel oil,transformer oil
Medium Temperature
40-60℃
System Rated Pressure
1.6MPa
Working Vacuum
-0.075~ -0.095MPa
Filter Allow Pressure
0.35MPa
Model No.
ZKTA-20
ZKTA-50
ZKTA-100
ZKTA-150
Flow Rate
20L/min
50L/min
100L/min
150L/min
Power
18KW
36KW
65KW
65KW
Rated Pressure
≤1.6Mpa
Voltage
AC 380V, 50HZ
Medium Temperature
40-60℃
System Rated Pressure
1.6MPa
Working Vacuum
-0.075~ -0.095MPa
Filter Allow Pressure
0.35MPa
Fuction
Degassing, dehydration, demulsification, deacidification, purification for mechanical impurities( when deacidicate, need special explain)
Application
Hydraulic oil, lubricating oil,turbine oil,fuel oil,transformer oil


Technical Index after oil treatment
Gas content
≤0.2%
Moisture
≤30ppm
Acid Value
≤0.03mgKOH/g
Filtration Accuracy
NASI1638-5-7 class
