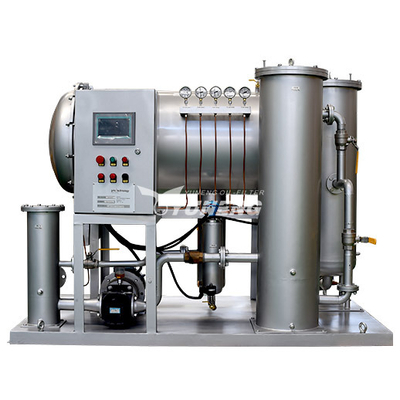

Coalescence Separation Oil Purifier
Coalescence Separation Oil Purifier dehydrates by 2 kinds of filter elements.
Coalescing filter will make the free and dissolved water from small molecule to big drop, then separation filter remove the
water drop by gravity, falling into the water tank. It removes the particles by stages of filters and cleanness up to NAS
grade 6.
Coalescing Dehydration Oil Water Separator Machine is applicable for on line running with light oil filled, turbine oil filled and lubricating oil filled systems,
Coalescing Dehydration Oil Water Separator Machine especially good for water- leakage systems.
Coalescence Separation Oil Purifier
Features:
1. The pipelines and tank of the purifier can be stainless steel or carbon steel.
2. Oil / water interface detector is used to monitor water level and discharge water automatically.
3. The electric system is controlled by PLC (with touch screen) , the working conditions of all the parts are displayed clearly, monitoring, alarming, action control and safety stop enable the oil filtration machine to run online.
4. Germany brand oil pump has good sealing quality, low noise and long service life.
5. Multilayer filtration can remove the impurities through coarse filter, protecting filter, and fine filer. Granularity test is good to achieve NAS6.).
Coalescence Separation Oil Purifier
Parameters:
|
Item |
Parameter |
Unit |
JT-50 |
JT-100 |
JT-150 |
JT-200 |
|
|
Technical Parameter |
Flow Rate |
L/MIN |
50 |
100 |
150 |
200 |
|
|
Working Pressure |
Mpa |
≤0.5 |
|||||
|
Temperature Range |
oC |
45-65 |
|||||
|
Power Supply |
|
50Hz 380V 3-Phase 4-Wire (or as requested) |
|||||
|
Total Power |
KW |
1.5 |
3 |
||||
|
Inlet/Outlet Diameter |
mm |
32 |
38 |
45 |
50 |
||
|
Size |
Length |
mm |
1500 |
1500 |
1600 |
1650 |
|
|
Width |
mm |
1000 |
1050 |
1200 |
1250 |
||
|
Height |
mm |
1400 |
1400 |
1500 |
1600 |
||
|
Weight |
Kg |
450 |
500 |
600 |
700 |
||
|
Oil Treatment Index |
Water Content |
ppm |
≤100 |
||||
|
Kinematic Viscosity |
m/s |
≤20% in comparison to the original bias value of new oil |
|||||
|
Demulsibility |
min |
≤15 |
|||||
|
Filtering Accuracy |
µm |
≤5 |
|||||
|
Cleanness |
NAS |
Grade 6 |
|||||
|
Oil Appearance |
|
Transparence |
|||||
