Koi Pond Water Purification Drum Filter Mini Aquaculture Fish Farming Rotary Drum Filter

1 Set
MOQ
Koi Pond Water Purification Drum Filter Mini Aquaculture Fish Farming Rotary Drum Filter
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Applicable Industries: Farms, Aquaculture
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pump, Motor
Material: Plastic Film and Wooden Case
Weight: 120
Size: 1150*900*850mm
Power: 0.49KW
Warranty: 1 Year
Productivity: 30000L/Hour
Weight (KG): 120 kg
Product name: Drum Filter
Application: Water Purification
Capacity: 30,000L
Model: CAT-CDF-PVC-30-1
Brand: CATAQUA
Flow rate: 30000L/H
Raw material: PVC PP
Micron Rate: 74 Micron
MOQ: 1 Set
Voltage: 220V/50Hz
Informação básica
Model Number: CAT-CDF-PVC-30-1
Condições de Pagamento e Envio
Packaging Details: Film wrapped and wooden case
Supply Ability: 999 Set/Sets per Month
Descrição de produto
Product Description

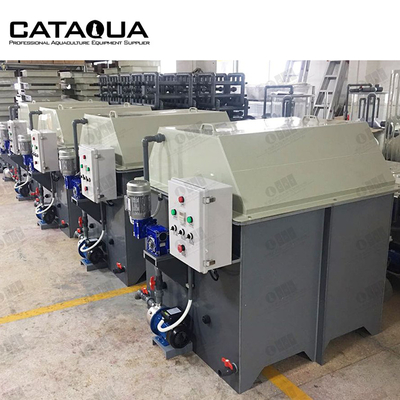

Cabinet Type Drum Filter
Installing drum filters is necessary for a successful RAS operation. Drum filter can remove suspended solids in RAS to increase the efficiency of nitrification in the biofilter. Although nitrobacteria require organic compounds to grow and colonize the bio-media, excessive organic compounds lead to the overgrowth of digestive bacteria, which grows faster than nitrification bacteria and competing for the space in the bio-media. Consequently, the efficiency of biofilter in the system will be negatively affected, for example, when the ratio of COD to ammonia-nitrogen larger than 2.7, the ammonia removal rate is reduced to 30%. The experiment has shown that the NO3-N average concentration between the inlet and outlet of the biofilter is larger than 0.4 mg/L with the presence of the drum filter, however, the NO3-N average concentration is smaller than 0.1 mg/L without the presence of the drum filter. Thus, drum filters can contribute greatly to improve the water quality in RAS. Furthermore, drum filters also possess huge beneficiary to lower the environmental impact of aquaculture outlet water and saving water resources.
SPECIFICATIONS FOR Fish Farm Aquaculture Rotary Drum Filter CATAQUA 30m3/H
Size
Overall Size
Unit::mm
L:720*W:760*H:850
Drum Size
Unit:mm
d:520 * L 650
Package
Unit:mm
L:1150*W:900 *H:850
Main performance parameters
Materials
Food Grade PVC /PP
Capacity
Unit:m3 / H.
30
Accuracy
Unit:μm
80
G.W.
Unit:kg
120
Flush Pump Power
Unit:kw
0.37
Motor Power
Unit:kw
0.12
Advantage
Compared with traditional
A unique font-pressure water system to improve recoil recoil effect, while also reducing the amount of water during recoil.
The unique fixation between the filter frame and the filter frame ensures the filtering effect and prolongs the service life of the filter.
Specialized
Suitable For Freshwater/Salt water.
Products Show
Drum filters are equipment that uses a rotating drum to screen out waste. The rotating drum is attached with screens, when the drum filter is working, 2/5 of the screens are submerged in water, the water being treated enters the drum according to the axial direction, and leaving the drum through the screens, meanwhile, the suspended solids, fibers, and paper pulps are intercepted in the inner side of the screen. When the suspended solids, fibers, and paper pulps are rotated to the top of the filter, they are flushed by the backwash water to the wastewater discharging channel, so the liquid and solids are separated. The backwash is controlled through a timer or water level sensor, and the filter being filtered flows back to the system to be reused. The drum rotation is driven by the electric motor, and the whole equipment is made of plastic, which is anti-corrosive. The screen material is nylon, and the mesh size ranges from 80 (180 microns) to 300 (48 microns). Other important parameters are: 1. 1-3 rotations/min; 2. Flow rate is 10-500m3/h; 3. Backwashing water pressure is 0.2-0.3MPa; 4. Headloss about 0.5m
Recoil Effect

When trapped in the filter impurities are brought to the upper part of the drum, is outside the screen backwash water will flow out into the sewage tank to achieve solid and liquid phases are separated by a timer or backwash liquid level sensor control. Filtered water is returned to the pool and reused. Microfiltration driven by hydraulic rotary machine, continuous automatic operation.


High Quality

30m3 /H with full 316L stainless steel, anti-corrosive, non-toxic and environmentally friendly. Mesh material is 316L stainless steel, filtration accuracy: 30μ ~ 130μ, more than 95% removal rate of the solid particles.
