Características

Especificações

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Kaolin

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: PLC, Engine, Gearbox, Motor, Pump

Condition: New

Automatic Grade: Automatic

Voltage: 380V

Weight: 2000 kg

Warranty: 1 Year

Compacting system: Mechanical

Filter Cake Discharging: Manual, Automatic, According to Customer Needs

Filtering Area: From 10 Square Meter to 1000 Square Meter

Thickness of Filter Cake: 30mm/40mm

Filter Pressure: 0.8MPa

Water Content of Filter Cake: Around40%

Method of Filtrate Flow: Open Flow / Closed Folw

Application Areas: Chemical, Pharmaccutical, Metallurgical, Ceramic

After Warranty Service: Online support

Informação básica

Condições de Pagamento e Envio

Packaging Details: Stainless Steel Frame Packaging or Wood Packaging

Supply Ability: 1000 Set/Sets per Year

Descrição de produto

Product Description

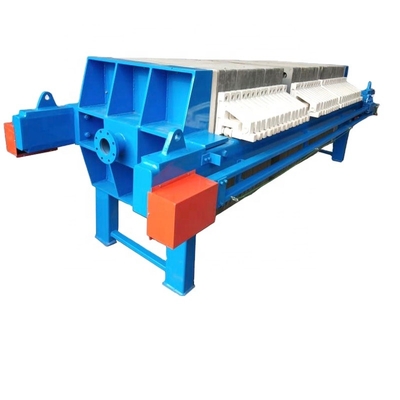

Kaolin plant filter press

Kaolin plant filter press is a fast opening and closing plate filter press, mainly composed of the electrical control system,
hydraulic control system and the host.When the equipment is operating, the hydraulic cylinder is driven by the mechanical
transmission device and dragged and moved to reach the design ated position . After the hydraulic cylinder is locked by the
locking device, the hydraulic cylinder is extended and all the filter plates are pressed together against each other so that the
filter plates form a closed filter chamber. the slurry is pumped to each filter chamber through feeding holes by feeding pump, the
solid liquid separation is achieved by the difference of the feeding pump's feeding pressure on the two sides of the filter
medium, the material was withheld in the filter chamber, filtrate was guided out of plates' water-guide hole. After a period of
time, the filtrate does not flow out and the filtration process is completed. According to the technical requirements, decide
whether to do the high pressure diaphragm press, wash and air dry. After that, the lock device is unlocked, the hydraulic cylinder
is withdrawn, then the hydraulic cylinder is driven by the mechanical transmission device and the filter plates are pulled apart.
Finally, discharge the filter cake, clean filter cloth, then enter the next filter cycle.

Specification

Filtering Area	10M2
Filter plate size	700mm*700mm
Filter Chamber volume	154L
Motor Power	2.2KW
Pressure	0.8Mpa
Machine Weight	1880kg
The filter cake conveyor belt or hopper can be ordered according to the specifications of the filter press.

Company Profie

Direction for Main Features

For the membrane filter press, membrane filter plate and chamber filter plate are arranged to form the
filter chamber,the slurry is delivered into the filter chamber by the pump,and the solid is separated from the liquid in the
slurry via filter cloth.

Pneumatic diaphragm pump

The QBY series pneumatic diaphragm pump produced by our company is a new type of convying machine, It uesd compressed air as the
power source and apply in various corrosive liquids,liquid with particles, high viscosity, volatild,flammable and high toxic
liquid.

Feature of Filter Plate

Filter plate is the core part of the filter press.Different material, models and qualities will affect the whole machine's
filtration performance directly.Its feeding hole,filter points distribution (filter channel) and water discharge channels have
different designs according to different materials

Advantages of Shenzhen HONGFA Filter Press:

Complete system including pumps

Compact and robust design

High level of security

Good price / performance ratio

Low maintenance

Long life span

FAQ

1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 20 days only.
3. What about the warranty for the machine?
Free warranty for one year
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
1 SET
6. How about the package?
suitable for sea freight as per your request.
