Brief Introduction:

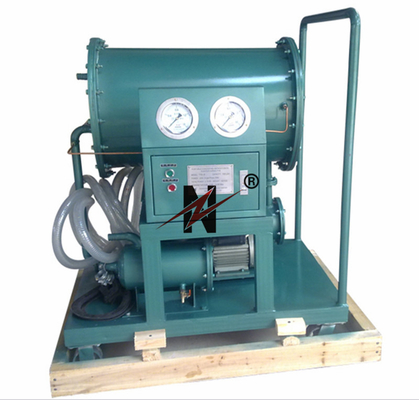

This machine, which can remove large of water without heating, creates the fastest dehydration speed in domestic at present. This machine can quickly separate water from the oil, which even contains half water, to attain cleanness of NAS 6 grade, Convenient using with the go-cart model designed. In a word, it is be used for fast removal of water and impurities in fuel oil or light oil which contains large amount of water.
Features:
1. TYB series purifier adopt special oil water separator which requires no heating,offering 20 times higher water removing efficiently than over other types of purifiers.
2. As no heating is needed,the additives in the oil are well prevented from degradation or deterioration.
3. Easy-to-operate,water can be discharged online automatically without the presence of operators.
4. Low operation cost,20%--40% lower than vacuum purifier,centrifugal purifier and filter press.
Technical Parameter:
Parameters | Unit | TYB-10 | TYB-20 | TYB-30 | TYB-50 | TYB- 80 | TYB- 100 | TYB-200 | TYB-300 |
Flow rate | L/min | 10 | 20 | 30 | 50 | 80 | 100 | 200 | 300 |
Working pressure | Mpa | ≤0.3 | |||||||
Working noise | Db(A) | ≤65-75 | |||||||
Running hours without malfunction | H | ≥4000 | |||||||
Continuous running hours | H | ≥150 | |||||||
Water content | ppm | ≤50 | |||||||
Particle Size | um | ≤1~5 without free carbon | |||||||
Cleanliness | NAS | ≤6 | |||||||
Power | KW | 0.75 | 0.75 | 0.75 | 2.2 | 2.2 | 3 | 3.5 | 3.8 |
Size | mm | 700*570* 1200 | 700*600* 1200 | 800*600*1200 | 850*650* 1200 | 900*680* 1200 | 1000*700 *1200 | 1300*750* 1200 | 1400*800* 1200 |
Weight | Kg | 80 | 90 | 105 | 135 | 150 | 185 | 200 | 230 |
We also supply other models for:
| single stage transformer oil purifier | double stage transformer oil filtration machine |
| other insulating oil purifier | heat transfer oil filtration machine |
| hydraulic oil purifier | other lubricant oil filtation machine |
| turbine oil purifier | diesel oil purification machine |
| fuel oil purification machine | used cooking oil to biodiesel pretreatment system |
| base oil decolering machine | crude oil/waste car/ship/vehicle engine oil regeneration plant |
| pressure plate oil purifier | other food grade oil filtration machine |
| oil flushing machine | oil filter |
| vacuum pump, oil pump, high pressure pump | other oil purifier spare parts |
